Overview:
Using origin-destination matrix and graph theory based measures, the software analyses the flow of entities through a network. The graph is directional, i.e. flow in both direction is analysed. The aim is to visually capture the congestion spots in the system.

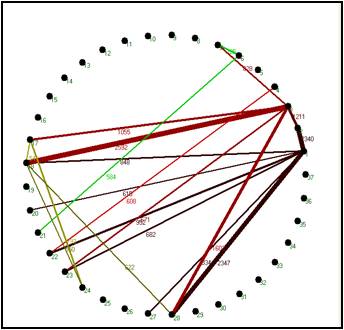

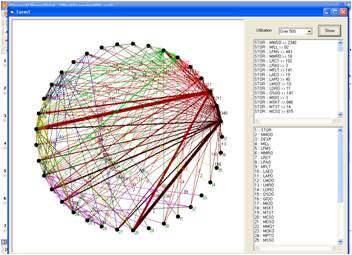

The data is presented graphically, using nodes arranged in a circular fashion as shown, with ability to filter the data to create an easy-to-read pattern.
|
